  Home >> FPV Equipment >> FPV Video TX RX >> FrSky X4RSB 3/16 Channel Telemetry Receiver Remote Telemetry For RC Helicopter Quadcopter Part RC Toy Accessary free shipping
FrSky X4RSB 3/16 Channel Telemetry Receiver Remote Telemetry For RC Helicopter Quadcopter Part RC Toy Accessary free shipping [Comments(0)|Leave your Comment]
Score:34  (Score change Discount Voucher)
g:
List Price:$39.89USD
Price:$34.59USD
You Save:$5.30USD
Qty:

detail

Comment

Payment

Shipping

 Description

Brand Name:                                     Frshy

Item name:                                         Frsky X4RSB 3/16ch Telemetry Receiver

Dimension:                                        40*22.5*6mm (L*W*H)

Weight:                                               5.8g

Number of Channels

 X4R-3/8Ch (Channel 9.10 and 11 via Pluse Width Modulation (PWM, normal servo output), and CPPM=channels 1-8)

 C4RSB-2/16Ch (Channel 9 and 10 vis Pluse Width Modulation (PWM, normal servo output), SBUS= channels 1-16, and CPPM = channels 1-8)

Operating Voltage Range:               4.0~ 10V

Operating Current:                          100mAA@5V

Operating range:                              full range (>1.5km)

With RSSI output on board:             PWM voltage output (0~3.3v)

Firmware:                                           User Upgradeable

Compatibility: FrSky X-series modules and Frsky transmitters (X4R and or X4RSB CPPM do not work with D-series. The EU version of the X4R or X4RSB will only work with EU versions of Frsky Modules and transmitters)



 Feature

Smart Port enabled, realizing two-way full duplex transmission

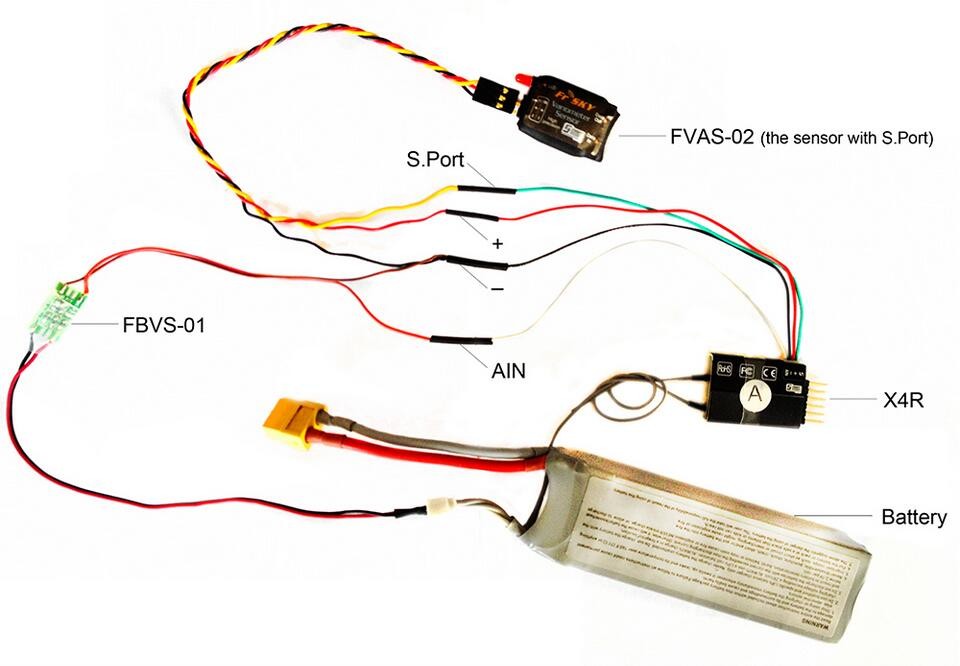

External analog telemetry port (AD2) for basic voltage monitoring

Lighter weight and physically smaller than X8R and X6R receivers.

More output options: X4RSB, X4RSB, with PWM, CPPM and SBUS output options, up to 16 channels available

 X4R, with PWM, and CPPM output options, up to 11 channels available

With RSSI PWM output (0~3.3V) on board

frskyTB2LoExlVXXXXaEXXXXXXXXXXXX_!!2658513811HTB1S0epJXXXXXXpXVXXq6xXFXXX9TB2gyoHlVXXXXXtXXXXXXXXXXXX_!!2658513811

Package include

1* FrSky X4RSB 3/16ch Telemetry Receiver



About Payment&Shipment

1) We only accept Paypal, Payment must be made within 3days of the order.

2) Item will be ship within 5 business days on payment received.

3)If your registered info is different from your Paypal info.By default, we ship the order to Paypal address.

4) Shipping cost doesn't include any import taxes, and buyer are responsible for customs duties.
